Rotary Spin Coating System for Sustainable Pulp Molded Products
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | OSMANUV |
| 인증: | ISO9001 |
| 모델 번호: | OSM-XT-3200T |
| 문서: | Version 2.0 of 24-station s...on.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 목재 포장 |
| 배달 시간: | 60 일 |
| 지불 조건: | t/t |
| 공급 능력: | 협상 |
|
상세 정보 |
|||
| 전압: | 220V, 380V, 380V/220V, 220V/380V, 380V/50Hz | 상태: | 새로운 |
|---|---|---|---|
| 애프터 판매 서비스 제공: | 서비스 기계 해외 서비스, 비디오 기술 지원, 온라인 지원, 해외 타사 지원 이용 가능, 현장 설치 | 치수 (l*w*h): | 맞춤형 크기, 2580*1130*1140mm, 1000*2575*1750mm, 1200*620*550mm (l*w*h), 1030*1000*620mm |
| 보증: | 1년, 한 Year,12 달 | 힘: | 3kw, 16kw, 65.3kw, 4.2kw, 0.75kw/220V/50Hz |
| 제품 이름: | 24 스테이션 스핀 코팅 기계 라인 | 속도: | 조절할 수 있는 |
| 강조하다: | rotary spin coating system for pulp molding,biodegradable film precision application machine,pulp molding coating machine with warranty |
||
제품 설명
Rotary Spin Coating System for Sustainable Pulp Molded Products
Composition of Production Line:

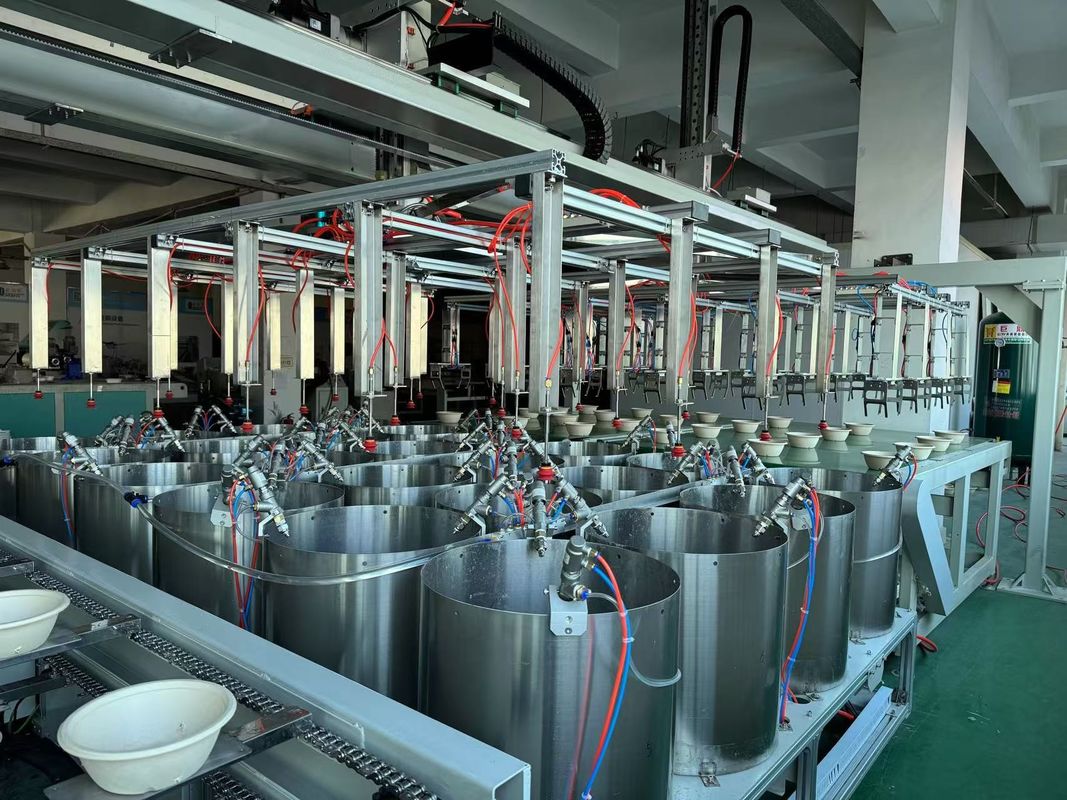

This precision line features a servo-driven indexing system, 24 individually programmable stations, high-precision ultrasonic spray or low-flow spray valves for minimal waste, a controlled climate pre-dry zone, a energy-efficient IR drying machine, and a final cooling conveyor.
Product Description:
This advanced rotary spin coating line is designed for applying the latest biodegradable, compostable, or UV-curable coatings to premium and sustainable pulp packaging. It focuses on precision application to minimize material usage—a critical cost factor for specialty coatings—while ensuring perfect performance. Ideal for high-value products in the electronics, cosmetic, and organic food sectors.
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model | OSM-XT-3200T |
| Suitable Product | Premium Pulp Packaging, Electronics Trays, Cosmetic Containers |
| Number of Stations | 24 |
| Coating Technology | Programmable Ultrasonic Spray / Low-Flow Spin Coating |
| Coating Type | Biodegradable (PLA, PHA), Water-Based, UV-Curable |
| Curing Method | Customizable (UV-LED, NIR, or Low-Temp Hot Air) |
| Control System | Advanced PLC with IoT connectivity for data monitoring |
| Coating Weight Accuracy | ±2% |
Application:
Applying ultra-thin, functional barriers and aesthetic coatings to premium pulp molded products requiring home or industrial compostability certifications.
Customization:
Highly customizable based on coating chemistry. Options include ultrasonic spray heads for ultra-low viscosity materials, UV-LED curing for instant cure, or NIR for gentle drying of heat-sensitive biopolymers.
Feature:
- Precision Application: Ultrasonic spin coating technology drastically reduces overspray and material consumption.
- Sustainable Focus: Compatible with the latest bio-based and compostable coating formulations.
- Gentle Curing: UV-LED or NIR options prevent thermal degradation of sensitive pulp substrates.
- Data Tracking: IoT connectivity allows for monitoring of production metrics and quality control.
Support and Services:
Extensive application development support, partnership with coating material suppliers, and remote diagnostics.
Packing and Shipping:
High-precision spray valves are shipped in separate, shock-proof packaging. The entire system is covered for dust and moisture protection.
FAQ:
Q: Can this line handle very thin, water-based coatings without clogging?
A: Yes. The ultrasonic spin coating technology is specifically designed for low-viscosity, particle-free fluids and is far less prone to clogging than conventional air spray nozzles, ensuring consistent application and minimal maintenance.
