High-Speed Automatic Rotary Coating Line for Pulp Molded Food Packaging - Precision Internal Barrier Solution
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | Osmanuv |
| 인증: | CE |
| 모델 번호: | OSM-XT-2400T |
| 문서: | PULP MOLDING AUTOMATIC SPIN...NE.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 나무 상자 |
| 배달 시간: | 35 일 |
| 지불 조건: | t/t |
| 공급 능력: | 협상 |
|
상세 정보 |
|||
| 자동 등급: | 오토매틱 | 포장: | 표준 목재 케이스 |
|---|---|---|---|
| 빛: | 적외선 IR 튜브 | 코팅 재료: | 다양한 재료 |
| 코팅 비용: | 저렴한 비용 | 구동 유형: | 전기 같은 |
| 상태: | 새로운 | 작업 스테이션: | 24역 |
| 강조하다: | high-speed rotary coating line,automatic pulp molding coater,precision internal barrier coating machine |
||
제품 설명

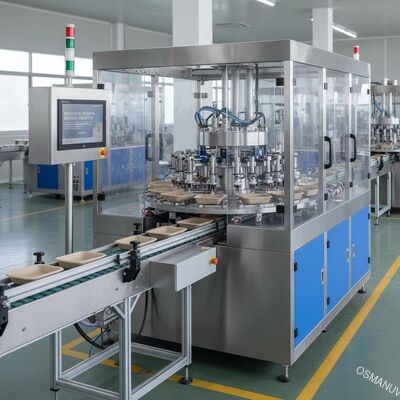

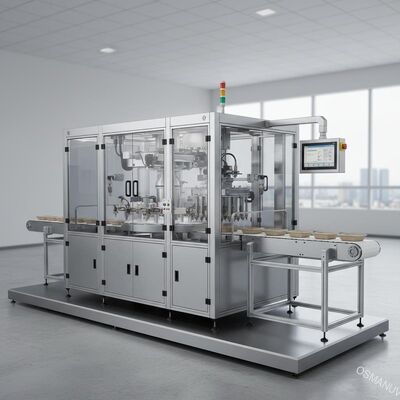

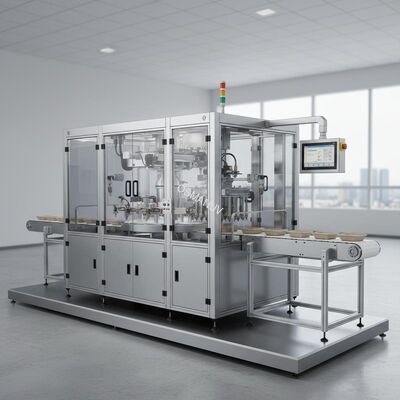

High-Speed Automatic Rotary Coating Line for Pulp Molded Food Packaging - Precision Internal Barrier Solution
Keywords: pulp molding coating line, automatic internal coating, food grade coating machine, customizable rotary coating system
Composition of Production Line:

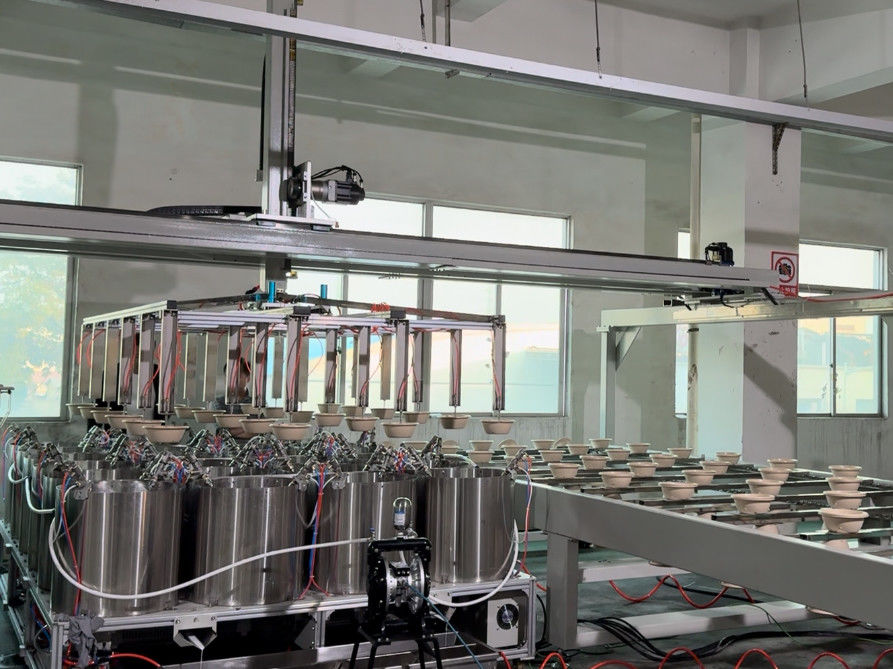

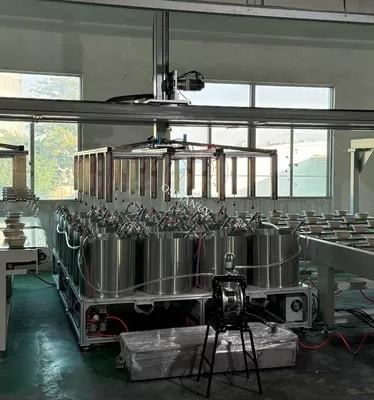

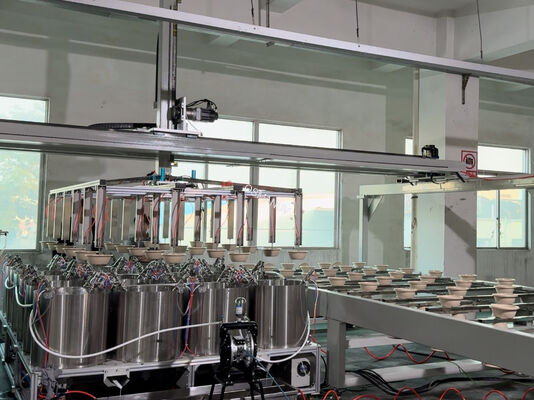

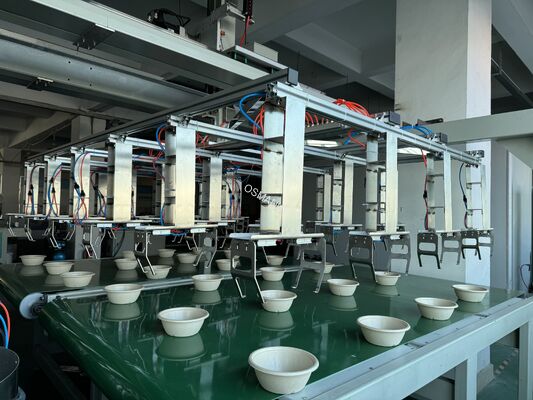

Automated loading system, precision rotary coating stations, multi-zone thermal curing oven, UV drying module, quality inspection station, robotic unloading system.
Product Description:
This fully automatic rotary coating line applies uniform, food-safe internal coatings to pulp molded products (e.g., food containers, tableware). It ensures excellent water/oil resistance and compliance with international food safety standards.
Technical Parameters:
| Parameter | Specification |
|---|---|
| Coating Thickness | 0.03-0.25 mm (adjustable) |
| Line Speed | 10-40 cycles/min (customizable) |
| Power Supply | 380V/50Hz/3Phase (configurable) |
| Drying Method | Thermal/UV hybrid (customizable) |
| Control System | Siemens PLC + 15" HMI with IoT connectivity |
| Coating Material | Water-based coatings (customizable) |
| Footprint | ~20m x 4m x 3m (customizable layout) |
Application:

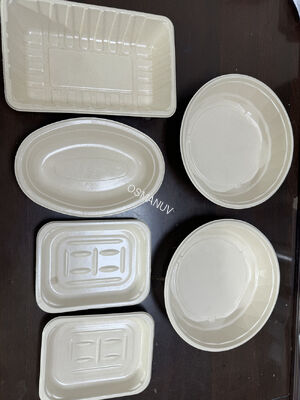

Internal coating for pulp molded food packaging, disposable tableware, and industrial packaging products.
Customization:
Fully customizable coating thickness, line speed, drying method, and material compatibility to meet specific production requirements.
Feature:
-
100% coating coverage guarantee
-
Energy-saving heat recovery system
-
Quick-change mandrels for different products
-
Compliance with FDA/EFSA standards
Support and Services:
Installation supervision, operator training, 24/7 remote support, annual maintenance contracts.
Packing and Shipping:
Export-standard wooden crates, waterproof wrapping, FOB/CIF terms available.
FAQ:
Q: Can it handle different product sizes?
A: Yes, the line is customizable with quick-change fixtures for various dimensions.
