상세 정보 |
|||
| 총 길이: | 27m | 효과적인 건조 폭: | 200mm |
|---|---|---|---|
| 색상: | 컴퓨터 흰색 + 잔디 녹색 | 벨트 종류: | 생선뼈 |
| 건조형: | IR 건조 | 애플리케이션: | HPL 시트 표면 코팅 |
| 기판: | 섬유 시멘트 보드 | 빛: | 적외선 IR 튜브 |
| 강조하다: | low operating cost UV sprayer,customizable spray gun UV curing machine,compact footprint UV curing machine |
||
제품 설명
Factory Direct Price Drop UV 102 | Customizable Spray Gun Quantity | Low Operating Cost UV Sprayer
UV 102 - Limited-Time Price Drop (≥15% off)
Product Description

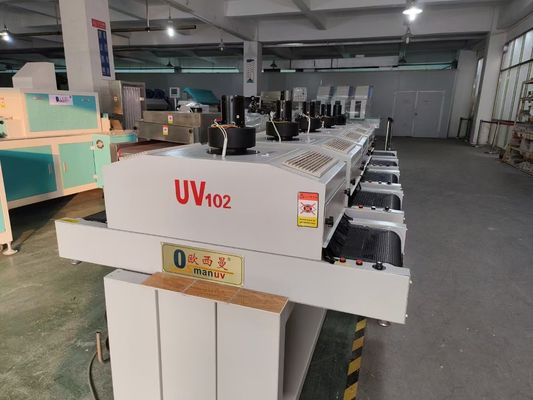

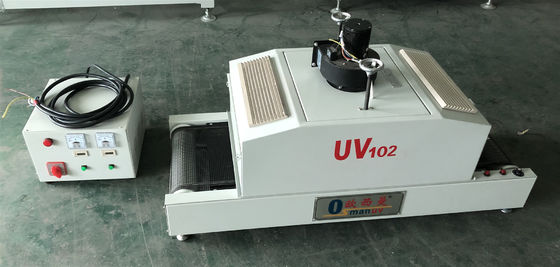

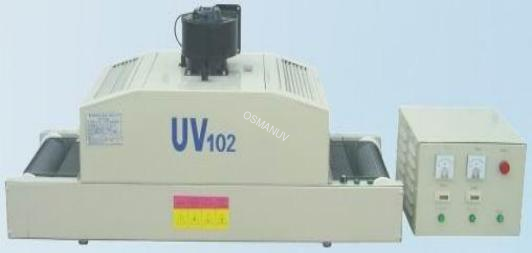

UV 102 is a compact, price-reduced automatic UV coating machine ideal for small to medium-sized factories.
It applies UV varnish onto flat or slightly curved surfaces (wood, plastic, metal, paper) and cures instantly under UV light.
The machine is highly customizable in lamp power, belt speed, and gun layout.
Despite the lower price, all core parts (lamp, ballast, conveyor motor) remain industrial grade.
Perfect for entry-level UV line or prototype shop.
Technical Parameters
| Parameter | UV 102 Standard | Customizable Range |
|---|---|---|
| Max coating width | 600 mm | Yes - 300 mm to 1200 mm |
| Conveyor speed | 1-8 m/min | Yes - 0.5-12 m/min |
| UV lamp type | Mercury UV lamp | Yes - LED UV (customizable) |
| UV lamp power | 2 kW x 1 lamp | Yes - 2kW/3kW/5kW, single or dual |
| Number of spray guns | 1 (automatic) | Yes - 1-3 guns |
| Curing zone length | 600 mm | Yes - 800 mm extension |
| Power supply | 220V / 50Hz / 1-phase | Yes - 110V / 60Hz or 380V |
| Paint tank volume | 10 L | Yes - 20 L / 30 L |
| Dimensions (L*W*H) | 1800*900*1500 mm | Yes - compact or extended frame |
Application
- Wood industry: wooden floor, cabinet door, picture frame
- Plastic: cosmetic cases, phone stands, signs
- Metal: nameplates, aluminum profiles
- Paper & cardstock: UV spot coating
- Customizable for 3D small parts (with rotary fixture option)
Customization
Even during the price drop, UV 102 remains fully customizable:
- Belt type - anti-static / high-temperature / magnetic
- Lamp height adjustment - manual or motorized
- Cooling system - air-cooled (standard) or water-cooled (customizable)
- Spray pattern - fan width & flow rate adjustable
- Color - any RAL code
- Brand labeling - OEM customization available
Features
- Instant UV curing - no drying tunnel needed
- Low energy consumption - standby mode saves 60% power
- Tool-less cleaning - disassemble spray gun in 30 seconds
- Overheat protection - auto lamp shutdown above 80°C
- Transparent safety shield - visible process with full protection
- Compact footprint - fits through standard door (customizable for narrow workshops)
Support and Services
- 24h online support - WhatsApp / WeChat / Email
- Spare parts kit - included with machine (customizable kit content)
- Remote video guidance - free for first 6 months
- On-site service - available at extra cost (customizable contract term)
- Warranty - 1 year standard (customizable extended to 2-3 years)
Packing and Shipping
- Packing: Bubble wrap + EPE foam + plywood case (customizable with "Fragile" label and export marks)
- Shipping methods: Sea / Air / Express (DHL/FedEx - customizable)
- Delivery time:
- Standard: 15-20 working days
- Customizable rush order: 7-10 working days (extra fee)
- Port: FOB Shanghai / Ningbo (customizable to any China port)
Frequently Asked Questions
Q1: How long will the UV 102 price drop last?
A: Minimum 30 days, but customizable discount extension for bulk orders (≥3 units).
Q2: Can UV 102 spray colors other than clear varnish?
A: Yes. UV 102 works with pigmented UV paints. The spray gun is customizable for higher viscosity materials.
Q3: Is assembly difficult?
A: No - it ships nearly assembled. We provide customizable video guidance for your local technician.
Q4: Can I add a second UV lamp later?
A: Yes. The control box is customizable for dual-lamp upgrade without changing the main frame.
