상세 정보 |
|||
| 커튼 헤드: | 1/2 | 애플리케이션: | 인쇄 산업, 포장, 전자 |
|---|---|---|---|
| 최대 코팅 너비: | 1040 밀리미터 | 절단 정밀도: | ±0.2mm |
| 코팅 자동화: | 높은 자동화 | 재료 호환성: | 종이, 판지, 플라스틱, 금속 |
| 보증: | 1년 | 코팅 속도: | 0-10미터/분 |
제품 설명

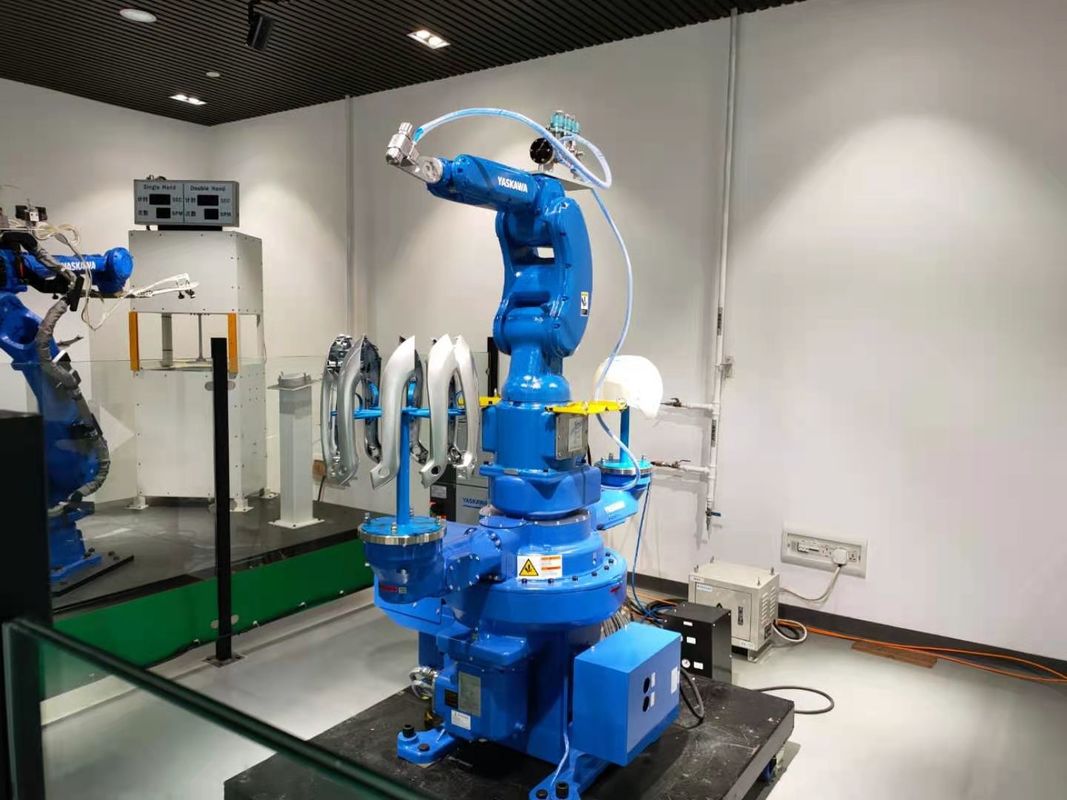

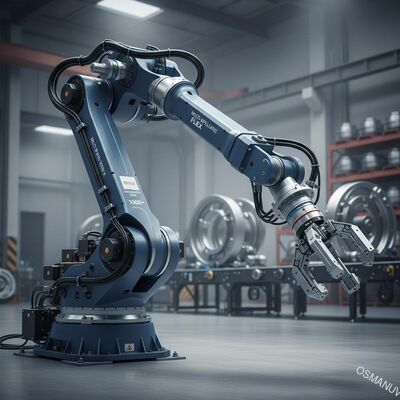

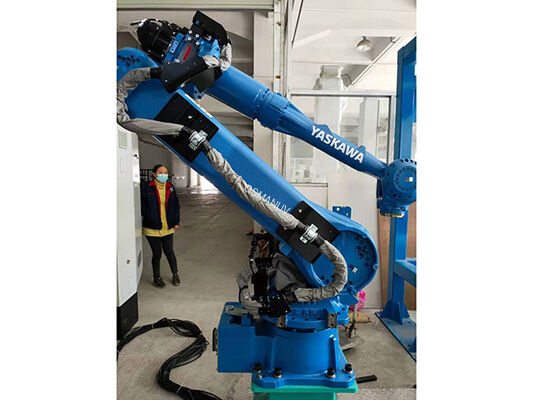

Our industrial robotic manipulator is engineered for high-repeatability tasks in demanding manufacturing environments. It delivers high-speed motion, low maintenance requirements, and exceptional multi-application flexibility. Suitable for both small-batch job shops and high-volume production lines.
Customizable options include: number of axes (4/6/7), reach length (500-2000 mm), payload capacity (3-300 kg), mounting type (floor/wall/ceiling/mobile), and communication protocols (EtherCAT, Profinet, EtherNet/IP).
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| Number of axes | 6 axes | 4 / 5 / 7 axes customizable |
| Payload | 10 kg | 3 - 300 kg |
| Reach | 800 mm | 500 - 2000 mm customizable |
| Repeatability | ±0.03 mm | ±0.01 mm (high-precision mode) |
| Maximum speed (TCP) | 2.5 m/s | Up to 4 m/s customizable |
| Mounting orientation | Floor | Wall / ceiling / angle / mobile AGV |
| Protection class | IP54 | IP65 / IP67 (dust-proof & washdown) |
| Controller interface | Ethernet + Digital I/O | Profibus / EtherCAT / EtherNet/IP |
| Power supply | 220V AC | 400V AC or 24V DC (small manipulators) |
| Ambient temp range | 0 - 45°C | -10 - 55°C customizable |
- Material handling & machine tending (CNC, injection molding)
- Arc welding & spot welding
- Pick-and-place for PCB assembly
- Palletizing and case packing
- Screw driving and adhesive dispensing
- Polishing and deburring
- Cleanroom applications (Class 1000) with customizable sealing
We offer full customizable capabilities:
- Arm length and joint angle limits for confined spaces
- End-effector mounting plate pattern (custom bolt holes)
- Gripper type: parallel, angular, three-finger, or magnetic
- Built-in vision calibration routines
- Collaborative mode with torque limiting (for C-obot versions)
- Custom paint color, logo, and protective bellows
- Specialized software packages (e.g., welding path generator, screw driving sequencer)
- High rigidity carbon fiber or aluminum arm construction
- Drive system: AC servo motor with absolute encoder
- Backdrivable joints for easy manual teaching (select models)
- Drag-and-drop programming interface (graphical)
- Built-in collision detection and overload protection
- Low energy consumption - sleep mode after idle
- Real-time remote monitoring via Ethernet
- Customizable safety zones and speed limits per operation
- Free offline programming software (simulation included)
- 24/7 technical support hotline
- 12 months standard warranty (extendable to 36 months customizable)
- On-site installation and commissioning (global teams)
- Operator training - online, on-site, or customizable schedule
- Spare parts stocked in US, EU, and Asia hubs
- Packing: Steel-reinforced wooden crate with foam padding
- LCL / FCL container shipping or air freight
- Weight range: 80-1200 kg (depending on model)
- Each manipulator shipped with controller and cable set
- Customizable packing: anti-rust bag, export fumigation-free wood, shock sensors
Yes. Reach, arm shape, and joint limits are fully customizable to fit small or odd-shaped cells.
Yes. We provide IP65 and ISO Class 5 compatible manipulators with customizable covers and HEPA filtration ports.
We support handheld teach pendant, PC-based offline programming, and drag-to-teach (on customizable models).
Absolutely. Protocols like Modbus TCP, Profibus, and EtherCAT are customizable per order.
