상세 정보 |
|||
| 코팅 종류: | UV 코팅 | 롤러 소재: | EPDM |
|---|---|---|---|
| 색상: | 컴퓨터 흰색 + 잔디 녹색 | 컨베이어 파워: | 0.75kw |
| 코팅 폭: | 300-1300 mm | 코팅 수량: | 10 ~ 16g/sqm |
| 리와인드링 지름: | 400mm | 코팅 폭: | 900mm |
제품 설명
Product Description

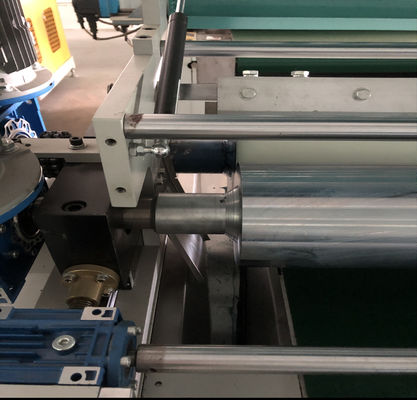

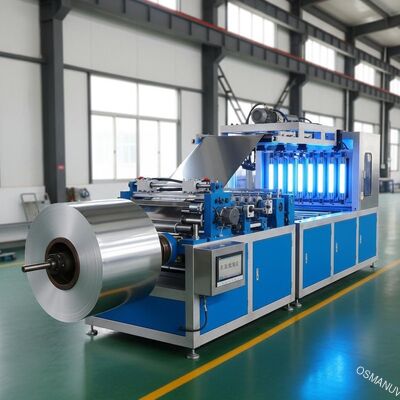

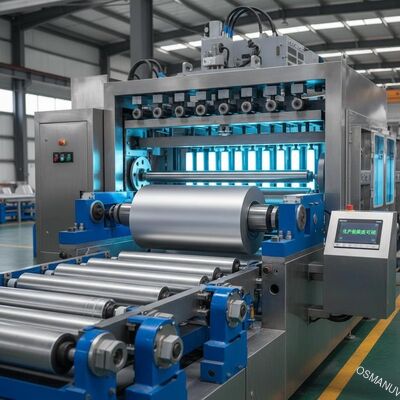

This industrial roll coating line is designed for continuous, high-speed coating of metal coils (aluminum, steel, galvanized sheet). It ensures uniform film thickness, excellent adhesion, and high gloss retention, ideal for building facades, roofing, and home appliances.
Technical Parameters
| Parameter | Value |
|---|---|
| Coil Width | 600 - 1600 mm (customizable) |
| Line Speed | 0 - 80 m/min |
| Coating Viscosity | 50 - 300 cps |
| Drying Temperature | 150 - 260°C |
| Coating Tolerance | ±1.5 μm |
Application
Architectural panels, roofing sheets, aluminum composite panels, pre-painted galvanized steel.
Customization
Customizable roll diameter, coating head configuration (2-roll / 3-roll), oven zone length, and PLC control interface.
Feature
-
Closed-loop coating thickness control
-
Automatic edge masking system
-
Energy-saving gas/electric hybrid oven
Support and Services
On-site installation guidance, operator training, remote troubleshooting, and spare parts supply for 10+ years.
Packing and Shipping
Shipped in steel-framed wooden cases with anti-rust film. FOB or CIF available.
FAQ
Q: Can I coat both sides simultaneously?
A: Yes, with customizable double-sided coating module.
