상세 정보 |
|||
| 안전 기능: | 과열 보호 | 일하는 힘: | 251kW |
|---|---|---|---|
| 브러시 롤러 파워: | 0.75KW 또는 1.5KW | 포장 부피: | 2.5 |
| 총 길이: | 27m | 전달 속도: | 25 - 80m/분 |
| 전력 공급: | 0.75/1.5 kw | 기계 치수: | 3500x1200x1500mm |
| 강조하다: | High-speed UV coating machine with tension control,Precision tension roll-to-roll processing equipment,Customizable tension control UV coating machine |
||
제품 설명
Product Description

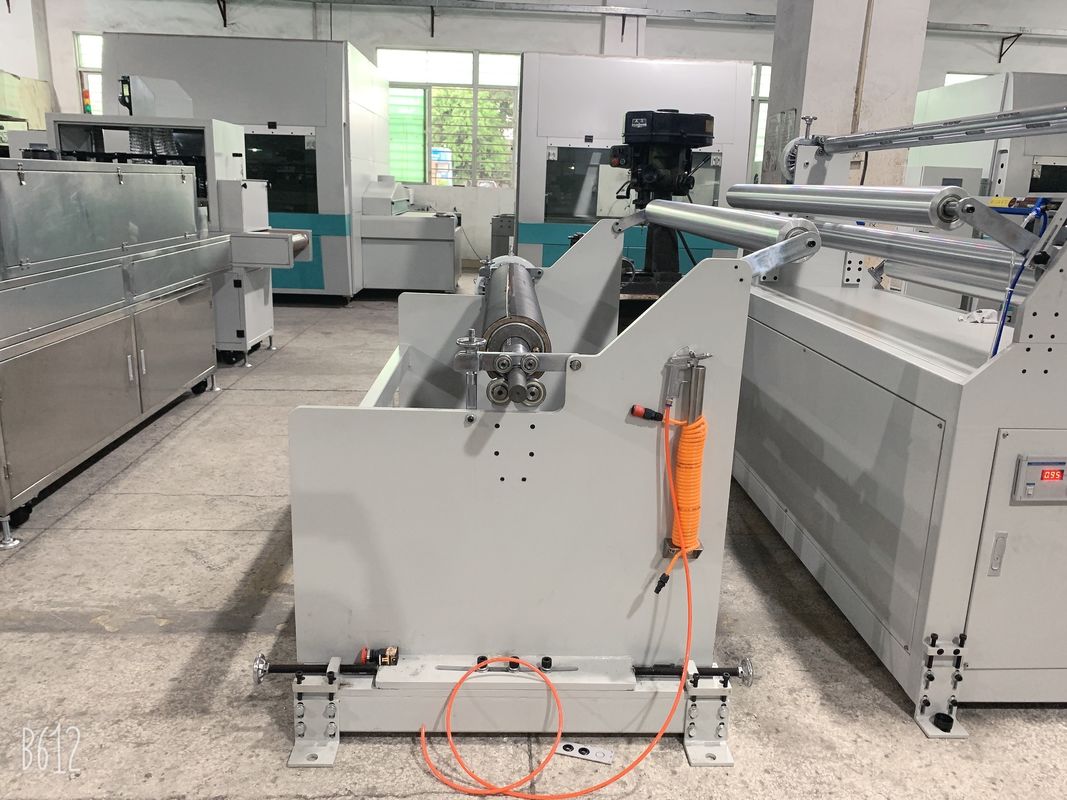

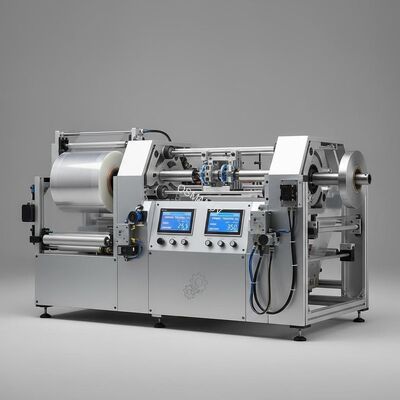

This unwinding & rewinding machine is a core roll-to-roll processing equipment for continuous material handling. It integrates unwinding, tension control, conveying, deviation correction, rewinding and counting functions, with stable operation, high precision and strong compatibility. It is customizable to match different material width, diameter, tension and speed requirements, widely used in packaging, printing, labeling, plastic film, paper, non-woven fabric and other industries.
Composition of Production Line
- Unwinding unit (manual/motorized/dual-station optional)
- Tension control system (magnetic powder/ servo control)
- Web guide & deviation correction unit
- Transition roller & buffer unit
- Rewinding unit (center winding/surface winding)
- PLC control panel & operation system
- Safety protection & alarm device
Technical Parameters
表格
| Item | Specification |
|---|---|
| Model | UR-1300/1600/1800 (customizable) |
| Material Width | 300–1800mm (customizable) |
| Unwinding Roll Diameter | Max. 800mm (customizable) |
| Rewinding Roll Diameter | Max. 600mm (customizable) |
| Core Inner Diameter | 3inch/6inch (customizable) |
| Working Speed | 10–300m/min (customizable) |
| Tension Control | Automatic servo/magnetic powder |
| Control System | PLC + touch screen |
| Total Power | 3–15KW (customizable) |
| Voltage | 220V/380V 50/60Hz (customizable) |
| Machine Dimension | Custom as per line layout |
| Weight | 800–3000kg (customizable) |
Features
- Precision tension control ensures no wrinkle, deviation or breakage
- Stable unwinding/rewinding with smooth speed regulation
- Customizable for single/dual station, automatic roll change
- Compact structure, easy operation and maintenance
- Emergency stop, safety guard and fault alarm
- High compatibility for film, paper, non-woven, tape, label etc.
Application
- Packaging film: BOPP, PET, PE, PVC, stretch film
- Paper: kraft paper, thermal paper, sticker paper, label stock
- Non-woven fabric, textile, leather, aluminum foil
- Adhesive tape, protective film, insulating material
- Printing & converting production line
Customization
We provide full customization services:
- Custom width, diameter, speed and tension
- Single/dual station, automatic/manual operation
- Special design for high temperature, anti-static, clean room
- Integration with slitting, coating, printing, laminating
- Custom color, logo and control language
- Tailored production line layout and installation
Support and Services
- Pre-sales: free solution design and parameter consultation
- In-sales: production tracking, quality inspection, test video
- After-sales: 12-month warranty, lifelong maintenance
- Online remote guidance, engineer on-site installation & training
- Spare parts supply with fast delivery
- 24/7 technical support
Packing and Shipping
- Standard: plywood case with anti-rust & shockproof packaging
- Protection for motor, control panel and precision parts
- FCL/LCL shipping by sea/air/express
- Custom packing for export and special transport
- Complete customs declaration documents
- FAQ
- Q: Can you customize the machine for special materials?
A: Yes, it is fully customizable for different material thickness, width and tension.
- Q: What is the delivery time?
A: Standard 15–30 days; custom model 25–45 days.
