상세 정보 |
|||
| 용사 거리: | 0-200mm | 애플리케이션: | 자동차, 가구, 전자 |
|---|---|---|---|
| 생산능력: | 2000kg | 생산 라인 속도: | 1-15m/분 |
| 무게: | 3000KG | 작업 속도: | 5-20m/분 |
| 제품명: | 분무 피복기 | 폭을 기계화하기: | 300mm |
| 강조하다: | automatic spray coating machine for wood,customizable spray coating machine for glass,adjustable conveyor speed spray coater |
||
제품 설명
Fully Automatic Spray Coating Machine for Wood & Glass – Customizable Width, Gun Configuration & Conveyor Speed
Product Description
This fully automatic spray coating machine is designed for high-precision painting applications on panel furniture, solid wood doors, decorative panels, photovoltaic glass, mesh fabrics, and craft products. The machine supports PU, NC, water-based paints, and color glazes. Equipped with Japanese Iwata automatic spray guns and a high-efficiency air filtration system, it ensures uniform coating, minimal paint waste, and a dust-free spraying environment. With PLC-controlled operation and fully customizable configurations, this system delivers consistent finish quality and operational efficiency for medium to large-scale manufacturing environments.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-GX-PV-13200/PT (customizable) |
| Effective Width | 1300 mm (customizable) |
| Machining Width | 300 mm – 1300 mm (customizable) |
| Machining Thickness | 3 – 200 mm |
| Minimum Machining Length | 1000 mm |
| Spray Gun Type | Japanese Iwata automatic spray guns (customizable quantity) |
| Spray Gun Diameter | 1.0 – 1.5 mm |
| Spray Gun Angle | Manually adjustable (customizable: motorized adjustment available) |
| Power Supply | 380V AC / 50Hz (customizable) |
| Total Power | 4.6 kW |
| Overall Dimensions (L×W×H) | 4200 × 3050 × 2500 mm (customizable) |
| Paint Supply System | 2 × Taiwan Xinjing 1-inch diaphragm pumps with pressure stabilizing valves |
| Control System | Siemens PLC + Weilun HMI + OMRON relay + Schneider contactor |
| Air Filtration Class | Class 10,000 high-efficiency air filter |
| Conveyor Type | Rotating roller system (customizable: mesh belt or Teflon belt available) |
| Inner Wall Material | 1.5T SUS304 stainless steel |
| Exhaust System | 2 high-efficiency fans (ducts and secondary treatment by customer) |
Application
Ideal for spray coating in the following industries:
-
Panel furniture – Cabinets, tables, chairs
-
Solid wood doors – Interior and exterior doors
-
Decorative panels – Wall panels, ceiling panels
-
Photovoltaic glass – Anti-reflective coating
-
Mesh fabrics – Plane mesh, upholstery fabrics
-
Craft products – Decorative items, art pieces
-
Cabinet doors – Kitchen and bathroom cabinets
Supports PU, NC, water-based paints, and color glaze applications.
Customization
The automatic spray coating machine is fully customizable to meet specific production requirements:
-
Customizable effective width – Available from 300 mm to 1300 mm
-
Customizable spray gun quantity and configuration – Up to 8 guns available
-
Adjustable spray gun angle – Manual or motorized adjustment options
-
Customizable conveyor system – Roller, mesh belt, or Teflon belt options
-
Custom control system – PLC programming with multiple recipe storage
-
Custom housing color – Color card to be confirmed with client
-
Custom air filtration – Up to Class 1000 filtration available
-
Custom exhaust integration – Designed for seamless connection to customer’s ventilation system
Features
-

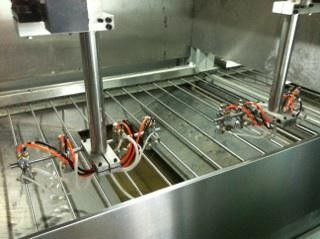

Japanese Iwata automatic spray guns – High-precision, uniform coating application
-
Fixed spray guns with manual angle adjustment – Flexible positioning for different product shapes
-
OMRON sensor-controlled gun travel – Ensures uniform coating and paint savings
-
SUS304 stainless steel inner wall – Easy to clean, dust-resistant, corrosion-resistant
-
Class 10,000 high-efficiency air filter – Maintains dust-free spraying environment
-

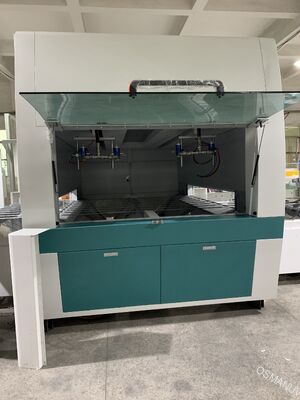

Glass viewing window – Allows real-time monitoring of spraying process
-
PLC control with HMI – Intuitive operation, recipe storage, and real-time monitoring
-
Paint recovery system – Minimizes waste and keeps workpiece backs clean
-
Safety features – Emergency stop, overload protection, and safety interlocks
Support and Services
-
Customization consultation – Tailored design based on product type, coating material, and production capacity
-
Installation and commissioning – On-site or remote support
-
Operator training – Comprehensive training for operation, maintenance, and safety protocols
-
Technical support – Lifetime remote assistance
-
Spare parts supply – Genuine replacement parts, spray guns, pumps, and filters
-
Warranty – 1-year standard warranty with extended options available
-
Color card confirmation – Pre-production color approval for outer shell
Packing and Shipping
-
Packing: Wrapped in protective film, secured with wooden pallet (ISPM 15 compliant), reinforced edges for export
-
Shipping: By sea, air, or land based on destination
-
Lead Time: 30–45 days after customization confirmation
-
Documentation: Operation manual, electrical diagrams, and CE certification (if applicable)
FAQ
Q1: What types of paint can be used with this machine?
The machine supports PU, NC, water-based paints, and color glazes. Custom configurations are available for other coating types.
Q2: Can the spray gun configuration be customized?
Yes, the spray gun quantity and configuration are fully customizable. Standard configuration includes 4 guns, with options for up to 8 guns.
Q3: What is the maximum workpiece width the machine can handle?
The standard effective width is 1300 mm, and this can be customized based on your product requirements.
