Compact Food Packaging UV Surface Sterilizer | Modular Design Supports Customization

제품 상세 정보:

원래 장소: 중국
브랜드 이름: OSMANUV
인증: ISO9001
모델 번호: OSM-SJ-600

결제 및 배송 조건:

최소 주문 수량: 1세트
가격: 협상 가능
포장 세부 사항: 나무 상자
배달 시간: 30~45일
지불 조건: 티/티
공급 능력: 협상
최고의 가격 접촉

상세 정보

안전 기능: 인터록 스위치가 있는 보호 커버 제품명: 자외선 방사선 기계
유형: 자외선 소독 기계 코팅 안전성: 높은 안전
타이머 제어 범위: 0-99분 전원 공급 장치: 220v/50hz
UV 살균 램프: 30w 램프 튜브(20개) 램프 유형: 수은 증기 램프

제품 설명

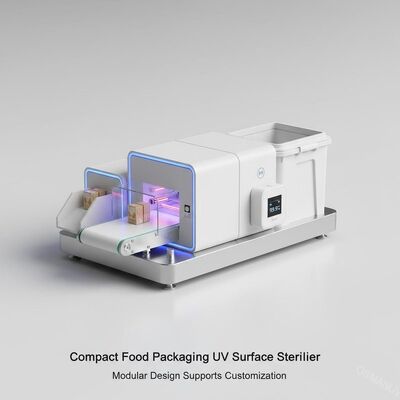

Compact Food Packaging UV Surface Sterilizer | Modular Design Supports Customization

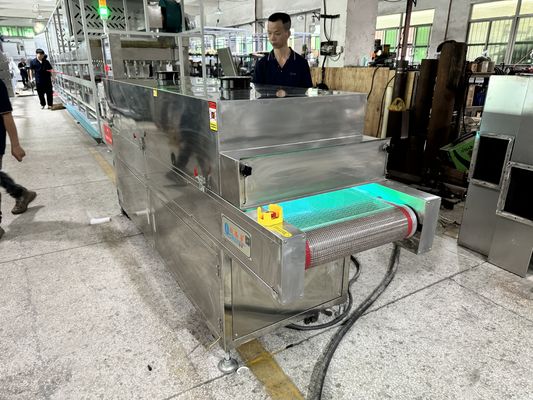

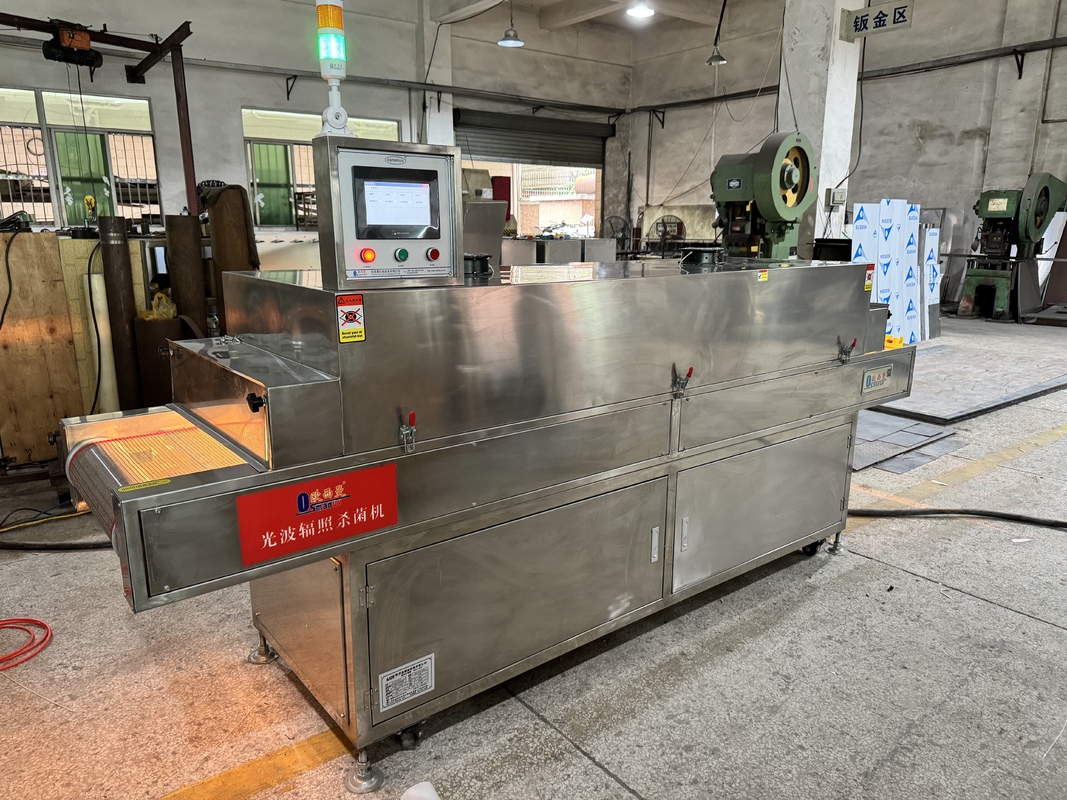

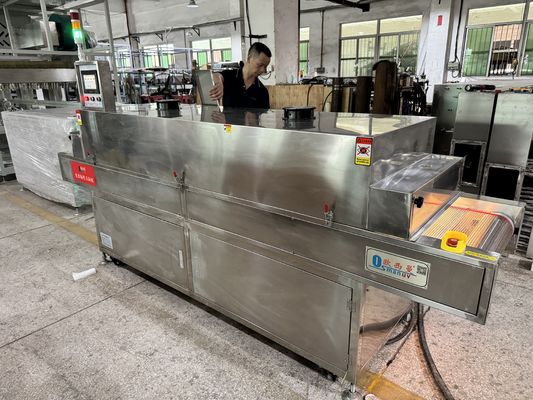

This UV sterilization equipment is specifically designed for disinfecting food packaging surfaces (such as trays, containers, films, etc.) using ultraviolet-C (UV-C) germicidal irradiation. It effectively eliminates up to 99.9% of bacteria, molds, and viruses without chemicals. The system is fully customizable in configuration, conveyor speed, UV lamp power, and layout to adapt to various production line needs.

Composition of Production Line

  • UV sterilization tunnel with stainless steel housing

  • High-intensity UV-C lamps (or UV-C LEDs)

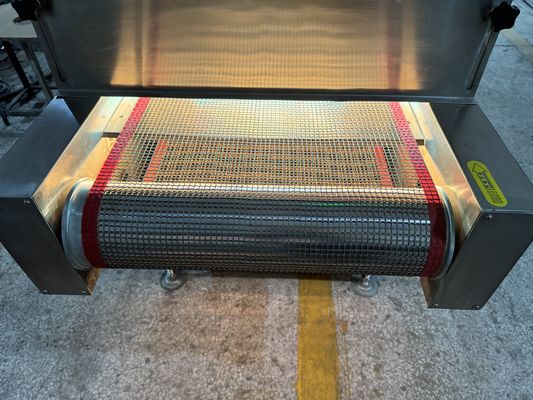

  • Conveyor belt system (adjustable speed)

  • Reflective aluminum chamber for enhanced irradiation

  • Electrical control panel with PLC/HMI

  • Safety sensors (motion detection, UV shield)

  • Optional: pre-cleaning module, cooling system, IoT monitoring

Technical Parameters



Parameter Specification Customizable Options
UV Wavelength 254 nm (185 nm optional) Yes (UVA/UVB/UV-C selectable)
UV Lamp Power 120 W per lamp (standard) 60-300 W per lamp
Conveyor Speed 0-10 m/min Adjustable according to output
Sterilization Efficiency >99.9% against common pathogens Validated per packaging material
Power Supply 220V/50Hz (or 110V/60Hz) Yes
Dimensions (L×W×H) 2000×800×1200 mm (standard) Custom lengths/widths
Material Contact Parts Stainless steel 304/316 Yes (food-grade coatings available)
Control Interface Touchscreen PLC with preset programs Custom software/logic

Application

  • Disinfection of pre-formed food containers (plastic, glass, metal)

  • Surface sterilization of packaging films/lids before sealing

  • Integration into filling/packaging lines for dairy, beverages, ready-to-eat foods

  • Use in pharmaceutical packaging cleaning processes

Customization

  • Tailored conveyor width/length to fit existing production lines

  • Adjustable UV intensity and exposure time based on packaging material

  • Custom safety interlocks and compliance with regional regulations

  • Optional integration with air purification or ozone removal systems

Feature

  • Energy-saving UV lamps with long service life (>9000 hours)

  • Real-time UV intensity monitoring and automatic adjustment

  • Modular design for easy expansion or reconfiguration

  • Compliance with FDA, CE, and ISO 9001 standards

Support and Services

  • Free preliminary production line assessment

  • On-site installation and training available

  • 24/7 remote technical support

  • Spare parts and maintenance packages

Packing and Shipping

  • Weatherproof wooden crate packaging

  • Fumigation-free materials for international shipping

  • Standard delivery: 15-30 days after confirmation (custom designs may require longer)

FAQ

  1. Can the UV intensity be adjusted for different packaging materials?
    Yes, the system is customizable with adjustable UV output and conveyor speed.

  2. Is the equipment suitable for moist or uneven packaging surfaces?
    Special reflective chamber designs can be customized to ensure uniform irradiation.

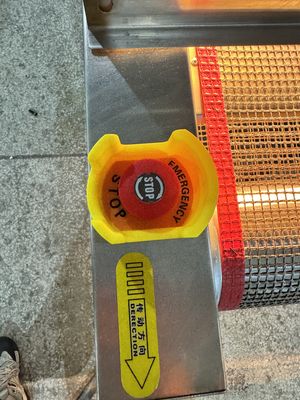

  3. How is safety ensured during operation?
    Automatic shut-off when the tunnel is opened, and UV-blocking viewing windows are standard.

  4. Can it be integrated into an automated production line?
    Yes, we provide customized PLC interfaces for seamless integration.

  5. What is the lead time for a fully customized system?
    Typically 4-8 weeks depending on technical requirements.
