High Capacity 14-Stage Microwave Drying Machine for Pulp and Herb Processing
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | OSMNAUV |
| 인증: | ISO9001 |
| 모델 번호: | OSM-WBHG-1320T |
| 문서: | microwave drying equipment.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1세트 |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 목재 포장 |
| 배달 시간: | 45일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 협상 |
|
상세 정보 |
|||
| 제품명: | 14단 전자레인지 건조기 | 유효 너비: | 1320 밀리미터 |
|---|---|---|---|
| 전압: | 380V/50Hz | 힘: | 136 kw |
| 마이크로파 진동수: | 2450MHz+50Hz | 코팅 속도: | 조정가능한, 0.5-5 미터/분 |
| 보증: | 1년 | 상태: | 새로운 |
| 강조하다: | 14-stage microwave drying machine,industrial microwave dryer for pulp,herb processing drying machine |
||
제품 설명

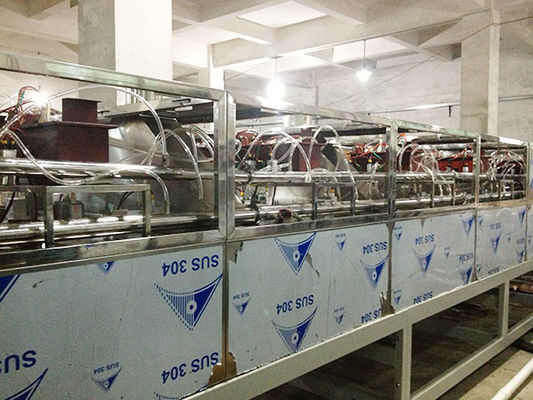

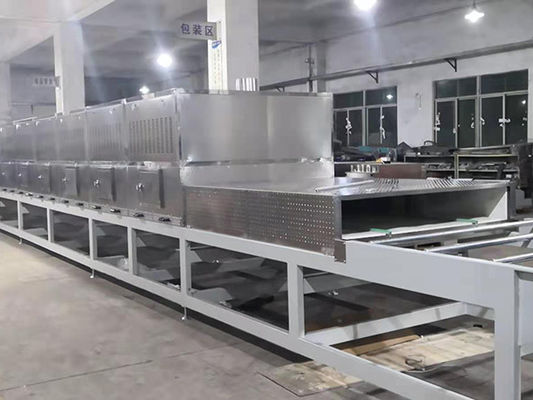

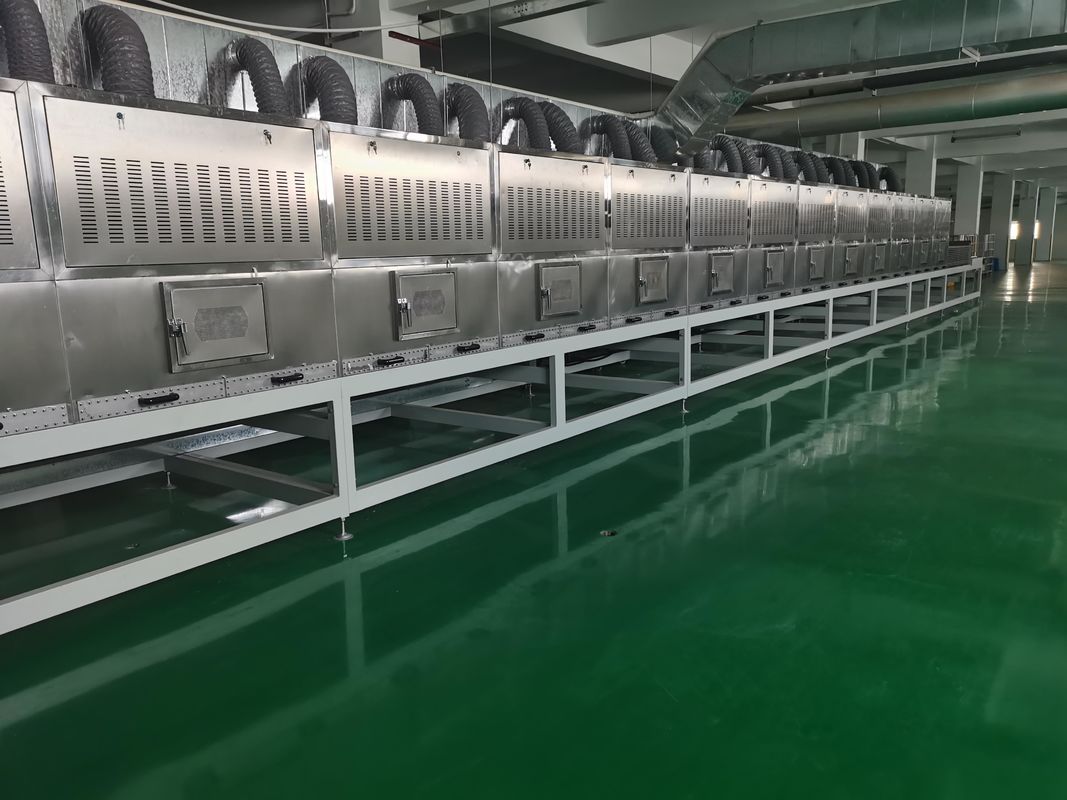

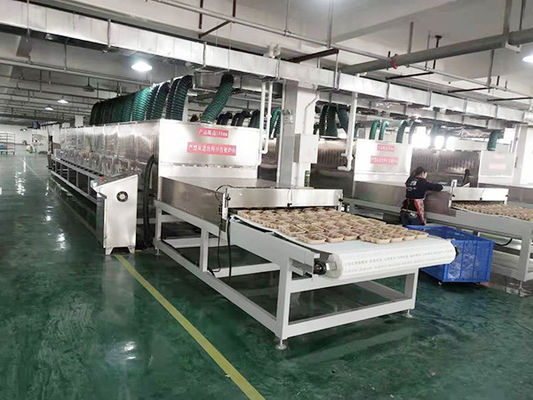

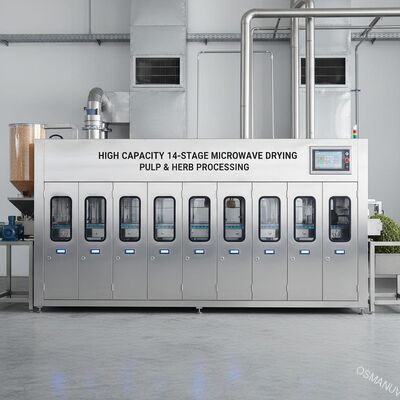

High Capacity 14-Stage Microwave Drying Machine for Pulp and Herb Processing
Product Description
This high-capacity 14-stage microwave drying tunnel is a heavy-duty solution for continuous production lines in both pulp molding and herbal medicine industries. It combines high throughput with the benefits of microwave technology, offering a tailorable and robust system for large-scale drying operations.
Product Description
This high-capacity 14-stage microwave drying tunnel is a heavy-duty solution for continuous production lines in both pulp molding and herbal medicine industries. It combines high throughput with the benefits of microwave technology, offering a tailorable and robust system for large-scale drying operations.
Technical Parameters
| Parameter | Details |
|---|---|
| Model | OSM-WBHG-1320T |
| Number of Cavities | 14 |
| Overall Dimensions (L×W×H) | 23380mm × 1620mm × 1855mm |
| Total Input Power | 136 KW |
| Conveyor Belt Speed | 0.5 - 5 m/min (Delta Inverter) |
| Magnetron Cooling | Water-cooled |
| Power Supply Cooling | Oil-immersed Water-cooled |
| Monitoring | Built-in camera for internal viewing |
Application
Designed for high-volume drying of pulp molding products and bulk herbal materials, seamlessly integrating into automated production lines.
Customization
As a non-standard customized system, we offer flexibility in the number of stages, overall length, power rating per stage, and additional features like enhanced monitoring or specific safety interlocks.
Feature
-
Multi-Stage Design: Allows for graduated drying, optimizing energy use and final product quality.
-
Continuous Operation: Engineered for 24/7 industrial use with a magnetron lifespan of 6000-8000 hours.
-
Integrated Monitoring: Internal camera system allows real-time visual inspection of the drying process.
Support and Services
Comprehensive after-sales support includes a one-year warranty, remote diagnostics, and the option for on-site technician dispatch (subject to service fees).
Packing and Shipping
The large tunnel is sectioned for safe transport. All parts are clearly marked for easy reassembly. Shipping is FOB from our factory.
FAQ
-
Q: What is the power requirement?
A: 3-phase 5-wire 380V±10% 50Hz±2%. The neutral line must be the same size as the phase line. -
Q: Do you provide the exhaust ducting?
A: No, the external exhaust ducts and environmental protection equipment are to be supplied by the customer.
