상세 정보 |
|||
| 생산 이름: | 두 개의 램프 UV 경화 기계 | 기계적 치수: | 길이 1900mm × 폭 2230mm × 높이 1410mm. (실제 크기에 따라 다름) |
|---|---|---|---|
| 지면에서 컨베이어 벨트까지의 높이: | 850-900mm 조절 가능 | 운송 방법: | 왼쪽에서 오른쪽으로 |
| 전원 공급 장치 전압: | 380V 50HZ, 3상 5선식 시스템 | 상태: | 새로운 |
| 보증: | 1 년 | 속도: | 1-15m/분 |
제품 설명

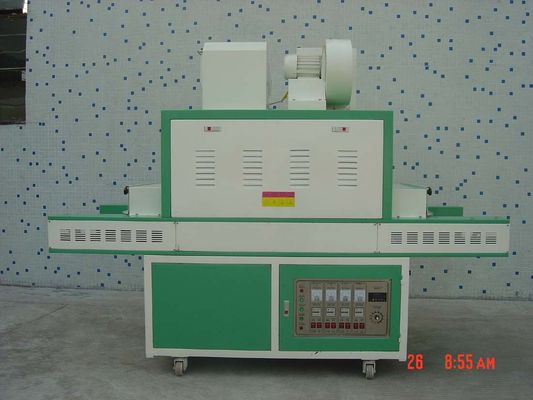

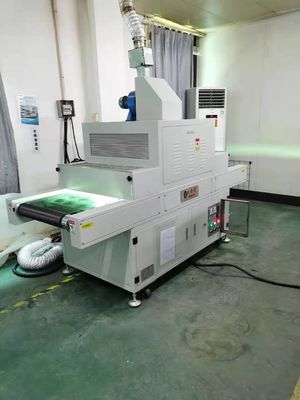

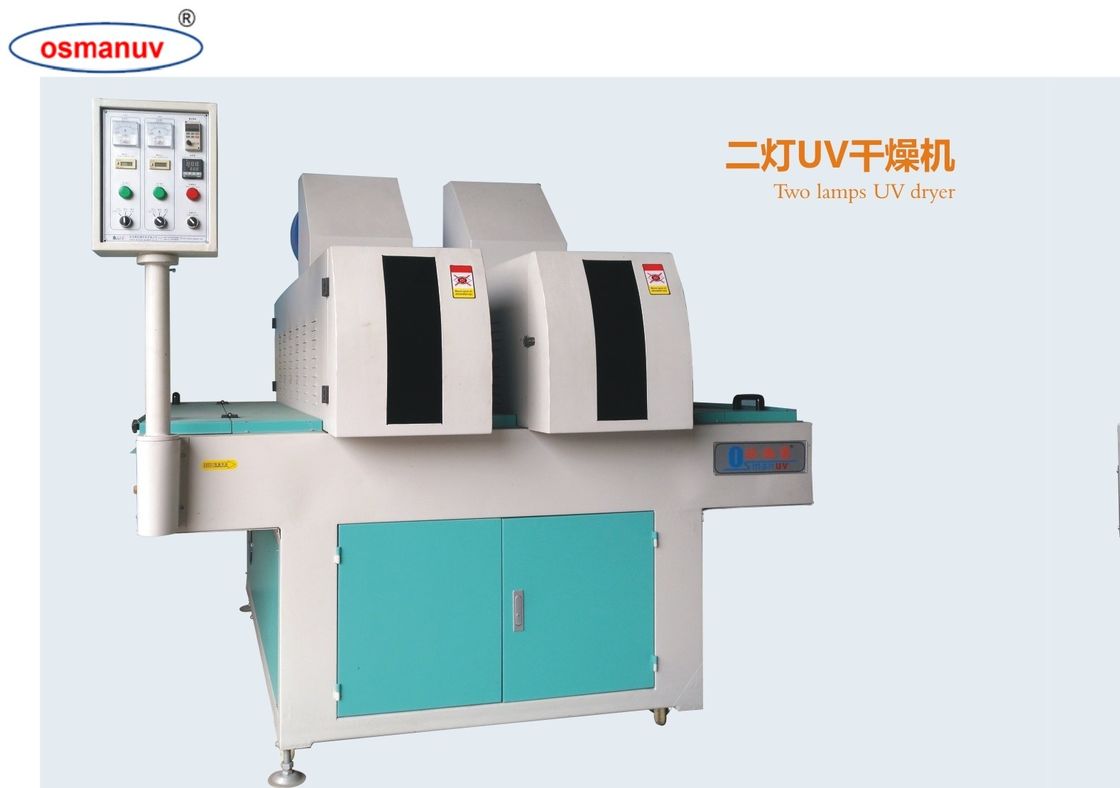

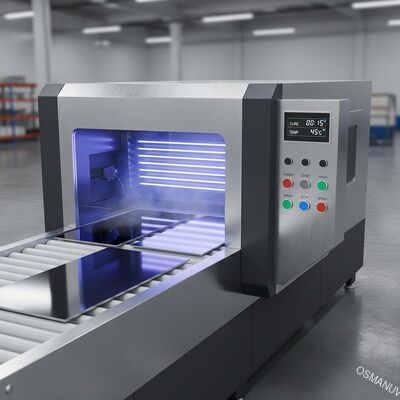

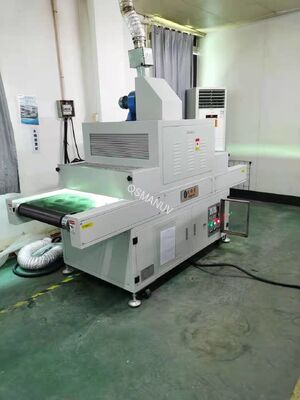

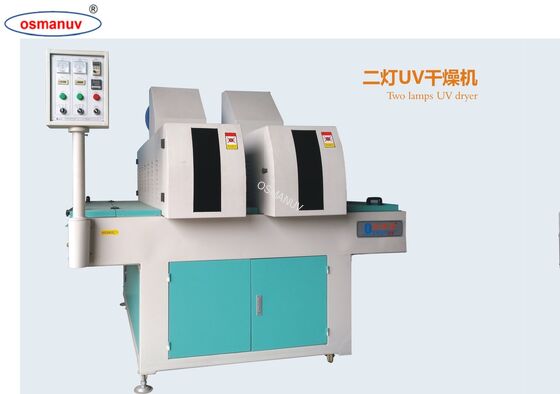

Aluminum Panel UV Curing Machine Fast Drying System for Metal Surface Coatings
Product Description
This specialized two lamp UV curing system is engineered for aluminum panels and metal substrates, featuring enhanced cooling systems and precise intensity control. The machine delivers consistent curing performance for various metal coatings while preventing heat-related substrate deformation.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model |
OSM-UV-1320Ⅱ |
| Lamp Type |
2 British PRIMARC 10KW 1387mm mercury mercury lamps |
| Cooling System | Forced air + water cooling |
| Intensity Control | 0-100% adjustable |
| Wavelength Range | 200-450 nm |
| Control Interface | Touch screen with recipe storage |
Application
Curing of UV coatings on aluminum composite panels, metal sheets, automotive parts, and industrial metal components requiring high-quality surface finishing.
Customization
-
Customizable cooling system configuration
-
Customizable intensity control ranges
-
Customizable safety interlock systems
Feature
-
Advanced thermal management
-
Precise intensity adjustment
-
Robust metal construction
-
Minimal heat transfer to substrate
Support and Services
-
Technical consultation service
-
Process optimization support
-
Regular maintenance programs
-
Emergency repair service
Packing and Shipping
-
Custom-sized protective crate
-
Component-specific packaging
-
Detailed installation manual
FAQ
Q: How does it prevent aluminum panels from overheating?
A: The integrated water cooling system and efficient ventilation maintain substrate temperature below 60°C during curing.
