상세 정보 |
|||
| 전압: | 220V, 380V, 380V/220V, 220V/380V, 380V/50Hz | 상태: | 새로운 |
|---|---|---|---|
| 치수 (l*w*h): | 맞춤형 크기, 2200mm L*1000mm W* 1280mm H | 구동 유형: | 전기 같은 |
| 보증: | 1 년 | 힘: | 9.5KW |
| 코팅 속도: | 조정가능한, 0.1-3 미터/분 | 코팅 폭: | 500mm |
제품 설명

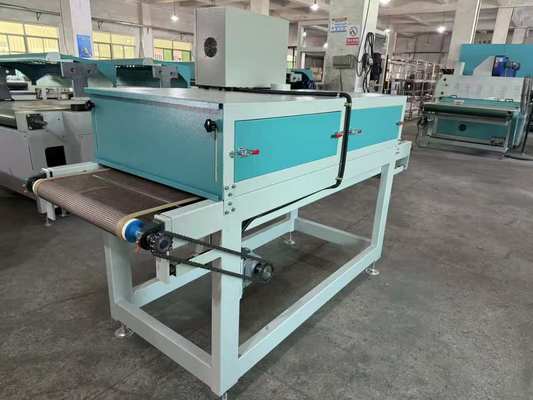

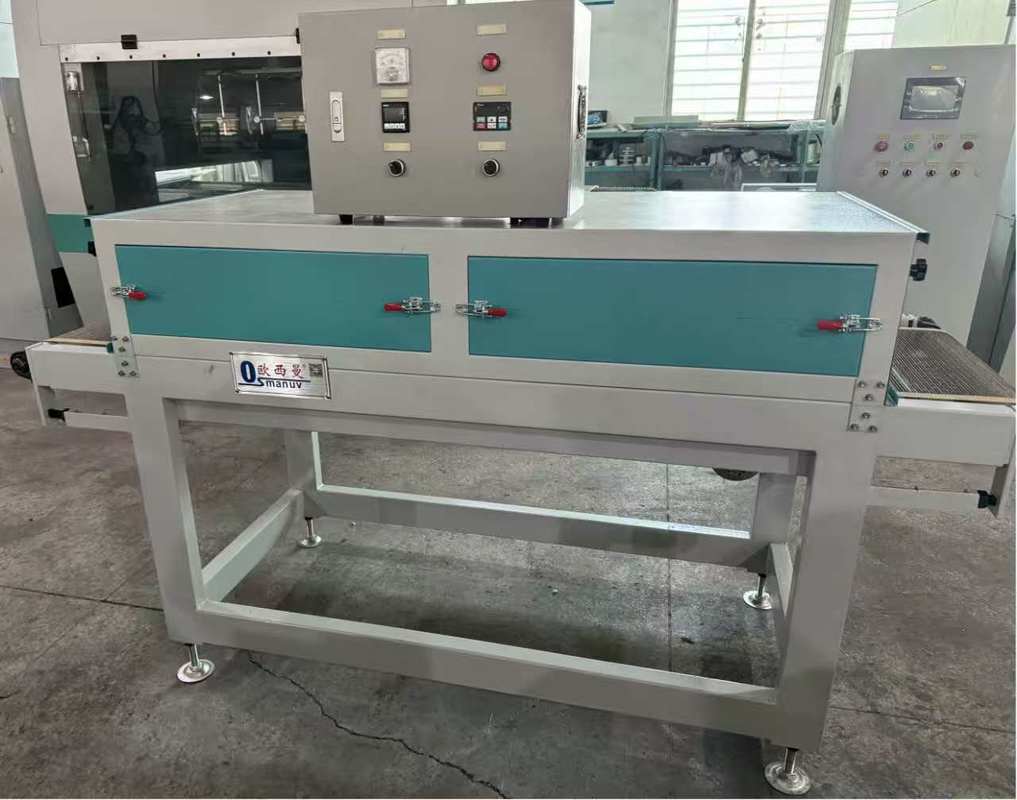

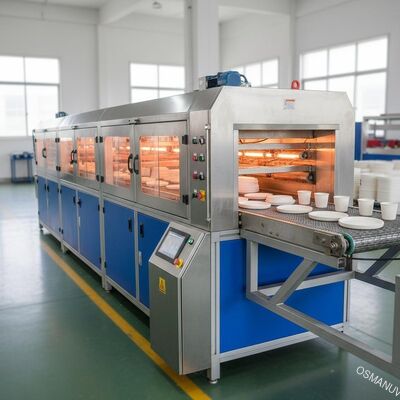

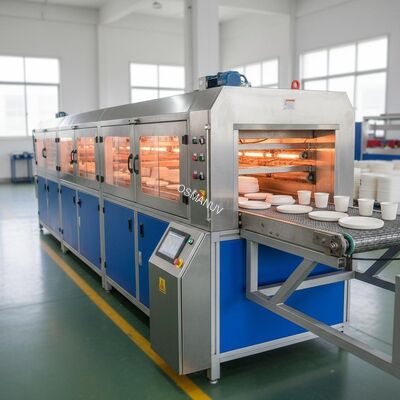

Bagasse Pulp Molding IR Drying Machine 2.2-Meter Rapid Drying System for Sustainable Tableware Production
Product Description
This 2.2-meter infrared drying machine is specially designed for efficient drying of bagasse pulp molded products. It utilizes medium-wave infrared heating technology to ensure rapid and uniform moisture removal, significantly reducing drying time while maintaining product integrity and shape stability.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | OSM-IR-500 |
| Heating Length | 2.2 meters (Customizable) |
| IR Emitter Type | Medium-wave ceramic infrared |
| Power Capacity | 9.5 kW (Customizable) |
| Temperature Range | 50–250°C (adjustable) |
| Belt Width | 500 mm (Customizable) |
| Control System | PID with touch screen interface |
Application
Drying of bagasse pulp tableware, food containers, egg trays, and packaging products in eco-friendly manufacturing lines.
Customization
-
Customizable IR emitter layout and power zoning
-
Customizable belt material (mesh, wire, Teflon)
-
Customizable thermal insulation and energy recovery setup
Feature
-
Fast and uniform heating
-
Low energy consumption per unit
-
Compact and space-saving design
-
Easy to integrate with existing lines
Support and Services
-
On-site installation support
-
Drying process optimization
-
Operator training manual
-
12-month warranty and spare parts supply
Packing and Shipping
-
Solid wooden crate with waterproof film
-
Internal foam cushioning
-
FOB/CIF shipping terms available
FAQ
Q: What is the typical drying time for bagasse pulp products?
A: Drying time ranges from 3–8 minutes depending on product thickness and initial moisture content.
