Automated Spray Coating System for Molded Pulp | Precision Internal Coating
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | Osmanuv |
| 인증: | ISO9001 |
| 모델 번호: | OSM-ZDPT-1320PT |
| 문서: | automatic spray coating mac...ne.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 나무 상자 |
| 배달 시간: | 30~45 일 |
| 지불 조건: | t/t |
| 공급 능력: | 협상 |
|
상세 정보 |
|||
| 전압: | 220V 50Hz | 색상: | 파란색/녹색/흰색 |
|---|---|---|---|
| 포장 재료: | 목재 | 구동 유형: | 전기 같은 |
| 코팅 재료: | ir | 주요 판매 포인트: | 고 진수 |
| 램프: | 대만 쿼츠 가열 튜브를 사용하십시오 | 핵심 구성 요소: | 엔진, 모터 |
제품 설명
Automated Spray Coating System for Molded Pulp | Precision Internal Coating
1. Composition of Production Line

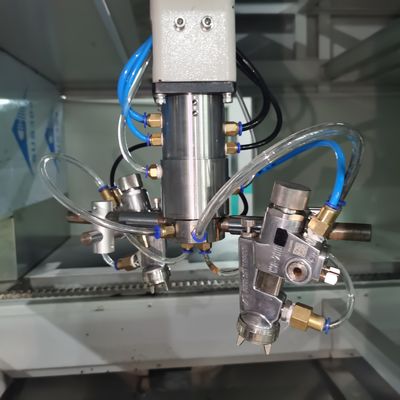

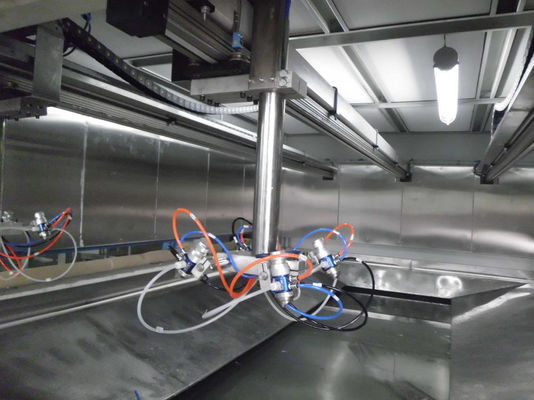

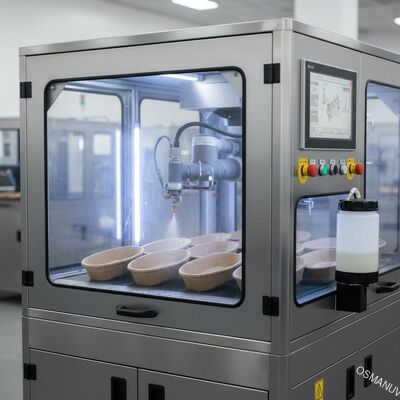

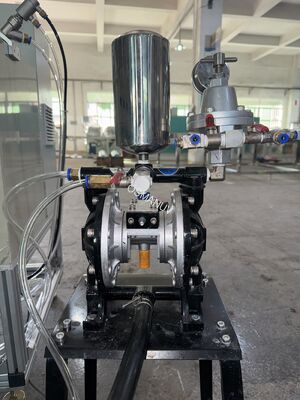

A complete system includes: an automated conveyor, 6-axis robotic arm with high-precision spray gun, vision positioning system, paint circulation and supply system, and a PLC control cabinet.
2. Product Description
This automated spray coating system is engineered for applying uniform water-based barrier coatings to the interior of complex-shaped molded pulp products. It ensures consistent film thickness and complete coverage, even in deep-draw containers, maximizing material efficiency and product quality.
3. Technical Parameters
| Parameter | Details |
|---|---|
| Model | AS-MP500 (Standard Model, Customizable) |
| Robot Type | 6-Axis Industrial Robot |
| Spray Technology | High-Transfer Efficiency Air-Assisted Airless |
| Coating Uniformity | ±3% deviation |
| Positioning Accuracy | ±0.5mm (via vision system) |
| Control System | PLC + Touch Screen HMI with path programming |
| Conveyor Speed | 0.5 - 3 m/min (Synchronized with robot) |
4. Application

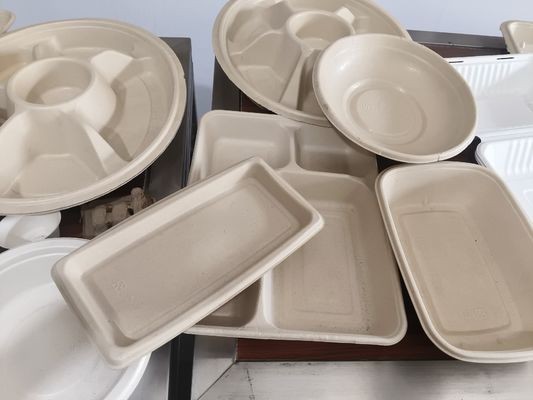

Ideal for applying moisture and grease barriers to food packaging like bowls, clamshells, and trays with complex geometries.
5. Customization
We offer fully customizable end-effectors and spray paths to match your specific product contours. The paint circulation system can be tailored for different coating viscosities.
6. Feature
-
Robotic precision for 100% consistent coverage.
-
Up to 40% material savings compared to manual spraying.
-
Vision-guided positioning compensates for pulp product dimensional variation.
-
Closed-loop paint system maintains coating viscosity and quality.
7. Support and Services
We provide installation & commissioning, robotic path programming training, and a 12-month warranty. 24/7 technical support is available.
8. Packing and Shipping
The system is disassembled into modules, packed in weather-proof wooden cases with custom foam inserts for safe transit.
9. FAQ
-
Q: How does it handle different product sizes?
-
A: The system can store multiple spray paths. Changeover is quick through recipe selection on the HMI. Customizable quick-change fixtures are available.
-
Q: What is the transfer efficiency?
-
A: Our advanced spray technology achieves over 85% transfer efficiency, reducing material waste and overspray.
