상세 정보 |
|||
| 제품 이름: | 9단계 마이크로파 건조기 | 입력 전원: | 3 단계 5 와이어 380V ± 10% 50Hz ± 2% (중립선은 위상 선과 동일해야 함) |
|---|---|---|---|
| 등급 입력 전력: | ≤35kVA를 전자레인지로 가열하세요 | 마이크로파 진동수: | 2450MHz±50Hz |
| 컨베이어 벨트 속도: | 0.3 -10m/min, 델타 인버터 속도 조절 가능 | 자기식 건식 냉각: | 수냉 |
제품 설명

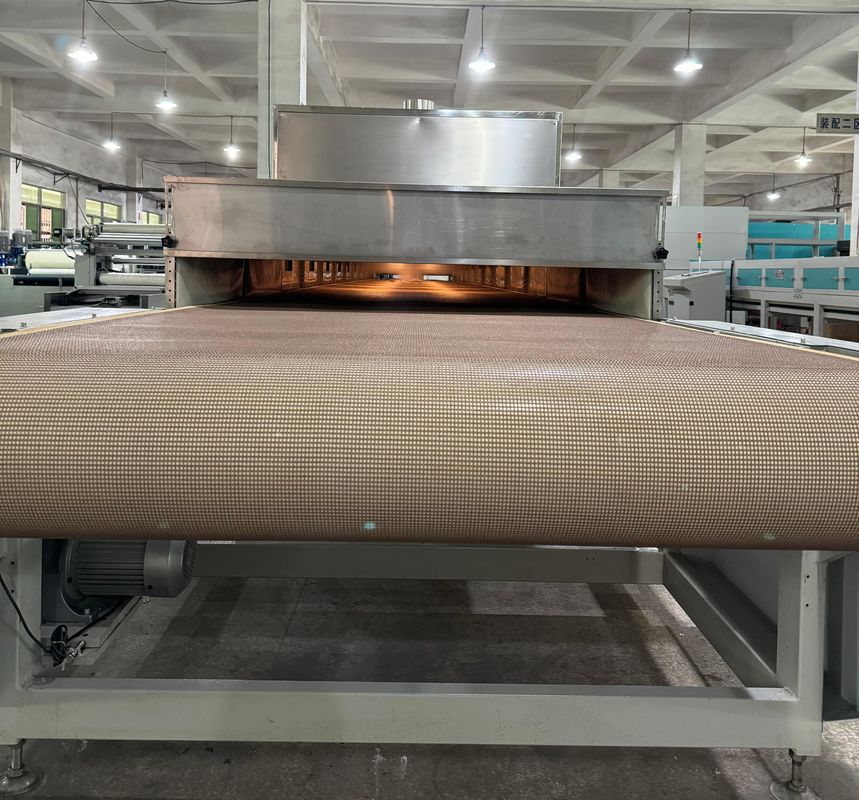

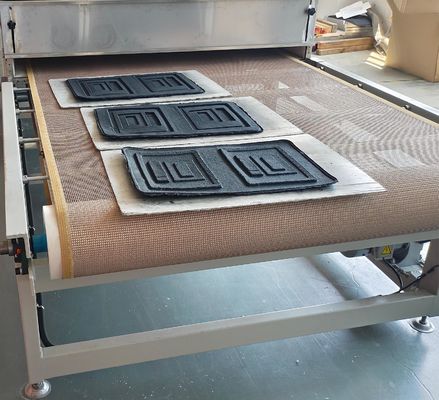

Microwave Drying Oven for Pulp Molding Curing: Rapid Moisture Removal System for Plant Fiber Food Packaging
-
Composition of Production Line:
This system comprises a stainless steel conveyor belt, microwave resonance cavity array, magnetron power units, ventilation and moisture exhaust system, PLC control cabinet, and temperature monitoring sensors. -
Product Description:
This industrial microwave drying oven is specifically engineered for the rapid and uniform drying of pulp molded products, such as food trays, egg cartons, and packaging inserts. It utilizes microwave energy to directly interact with water molecules within the plant fiber structure, causing them to vibrate and generate heat from the inside out. This results in significantly faster drying times (5-10 times faster than conventional methods), reduced energy consumption, and improved product quality with minimal shrinkage or deformation. -
Technical Parameters:
| Parameter Category | Details & Specifications |
|---|---|
| Model |
OSM-WBHG-1320 |
| Suitable Product | Pulp Molded Food Trays, Egg Cartons, Packaging Inserts |
| Heating Source | Microwave (2450MHz ± 50MHz) |
| Power Output | 85kW |
| Conveyor Width | 1320 mm |
| Conveyor Material | Food-Grade PTFE Coated Fiberglass |
| Control System | PLC + HMI Touch Screen with recipe memory |
| Venting System | Adjustable Exhaust Fan for moisture removal |
-
Application:
Rapid drying and curing of pulp molded food packaging products, replacing traditional slow and energy-intensive hot air tunnels. -
Customization:
This microwave tunnel can be customized in length, power output, and conveyor width to perfectly match your production speed and product size. Special material handling designs are available. -
Feature:
-
Rapid Drying: Drastically reduces drying time from hours to minutes.
-
Uniform Heating: Heats the product volumetrically, not just the surface.
-
High Energy Efficiency: Microwaves heat the product directly, not the air.
-
Precise Control: Easy to control and instant on/off with no thermal inertia.
-
-
Support and Services:
Installation supervision, safety and operation training, and readily available spare parts (magnetrons, etc.). -
Packing and Shipping:
The oven is shipped in modular sections for easy assembly on-site. All internal components are securely mounted and protected. -
FAQ:
Q: Why is microwave drying better for delicate pulp molding products?
A: Microwave drying provides uniform internal heating, which prevents case-hardening (a hard, dry shell with a wet interior) that can cause warping or cracking in conventional ovens. This results in better dimensional stability and higher product quality.
