Controlling Temperature 5 Meters Infrared Drying Machine For Pulp Molding Coating
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | OSMANUV |
| 인증: | ISO9001 |
| 모델 번호: | OSM-IR-200 |
| 문서: | 5 Meters IR Drying Machine.pdf |
결제 및 배송 조건:
| 최소 주문 수량: | 1 세트 |
|---|---|
| 가격: | negotiable |
| 포장 세부 사항: | 나무로 된 패키지 |
| 배달 시간: | 10일 |
| 지불 조건: | T/T |
| 공급 능력: | 협상 |
|
상세 정보 |
|||
| 안전성: | 과열 보호 | 종류: | 건조 기계 |
|---|---|---|---|
| 컨베이어 벨트: | 테플론 망망 벨트 | 전압: | 220v |
| 힘: | 2000W | 기능: | 플라스틱 컵 빠른 건조기 |
| 타이머 정보: | 1-60 분 | 보증: | 1년 |
| 가열 방법: | 적외선 | 색상: | 컴퓨터 흰색 |
| 유효 건조 폭: | 200MM | 빛: | 적외선 IR 튜브 |
| 조건: | 새로운 | ||
제품 설명
Controlling Temperature 5 Meters Infrared Drying Machine For Pulp Molding Coating
Product Description

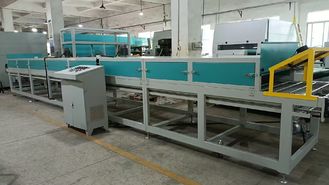

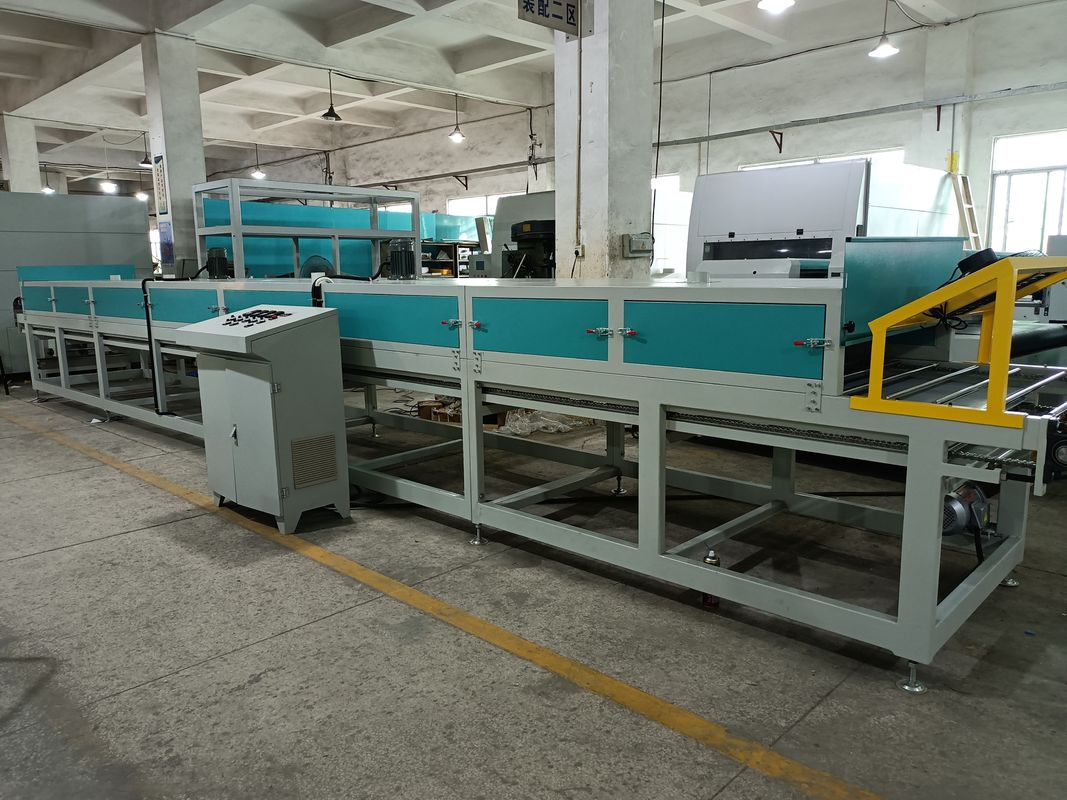

The 5 Meters IR Drying Machine (Model: OSM-IR-200) is a high-efficiency infrared drying solution designed for continuous industrial production. With a 5-meter drying tunnel and 750W extended shaft motor, it ensures uniform temperature distribution and fast curing for coatings, inks, or adhesives. The Kevlar conveyor belt (imported from the USA) and Taiwan Delta frequency converter enable smooth speed adjustment (1-5 m/min), ideal for high-throughput factories.
Technical Parameters
| Parameter | Details |
|---|---|
| Dimensions | 5000mm (L) × 1000mm (W) × 1280mm (H) |

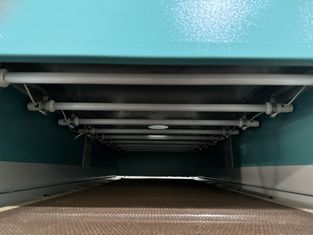

| Heating Source | US-made infrared quartz lamps, SUS 304 stainless steel inner wall |
| Temperature | Room temperature to 100°C (adjustable via BKC controller) |
| Belt Speed | 1-5 m/min (Delta frequency converter) |
| Power | 750W motor + Taiwan TWT gear reducer |
| Safety | Overload protection, emergency stop, CE-compliant electrical components |
Application
✔ Printing Industry: Drying UV inks on packaging materials.
✔ Electronics: Curing adhesives on PCB boards.
✔ Textiles: Heat-setting for synthetic fabrics.
Customization
-
Adjustable belt width (standard: 200mm).
-
Optional additional heating zones for higher temperatures.
Key Features
✅ Energy-saving: Infrared heating reduces power consumption by 30% vs. traditional ovens.
✅ Precision Control: Delta inverter ensures stable speed and temperature.
Support and Services
-
24/7 technical support via 400-666-2388.
-
On-site installation available in China.
Packing and Shipping
-
Wooden crate packaging (IP65 standard).
-
FOB Dongguan, lead time: 15 days.
FAQ
Q: Can it handle flammable materials?
A: Yes, with optional nitrogen atmosphere customization.
